Why This Product?

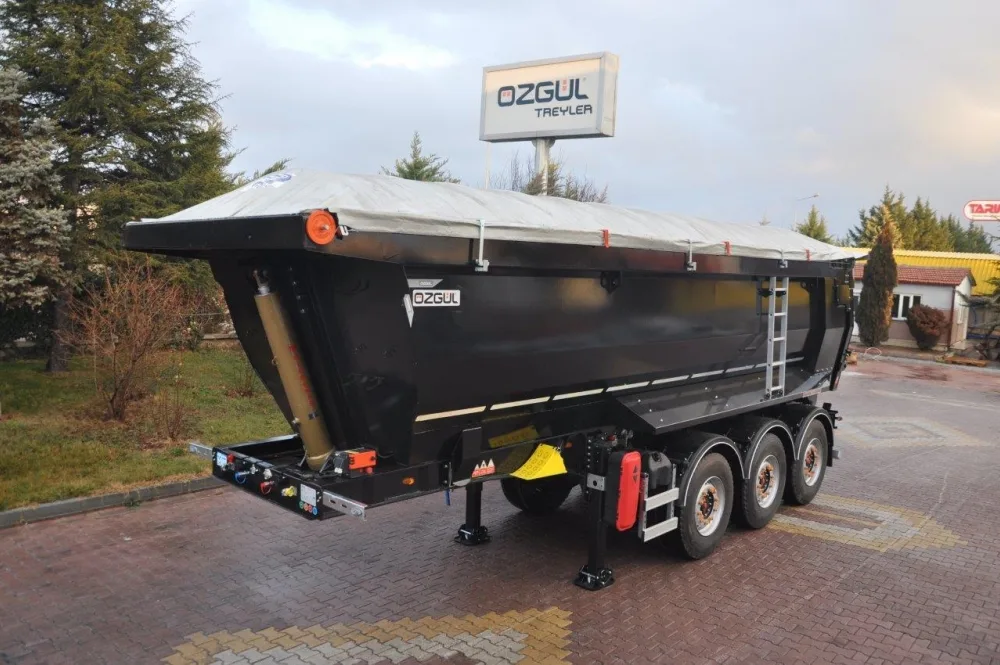

Özgül Trailer's Standard Pool Tipper Semi-Trailer is indispensable for the construction and mining sectors. With its robust steel chassis, high load capacity, and ease of use, it makes a difference on every construction site. ISO 9001 certified quality offers long-lasting performance.
Featured Features
Load Capacity
30-50 ton
Chassis
High-strength steel
The Standard Pool Tipper is designed for performance in every detail. Its robust structure and innovative features ensure that you carry your loads with confidence.
Load Capacity
30-50 ton
Chassis
High-strength steel
Number of axles
2 axles
Front extension
1,200 mm (cannot be combined with a rear swing radius of 2,150 mm)
Dimensions
13,350 x 2,550 mm (overall)
Fifth wheel height
1,050 mm
Rear swing clearance
2,150 mm
Kingpin
2"
Outrigger boards
Steel section as an outrigger boards complete with grips for the beavertail, in a galvanised finish.
EBS options
A digital display for:
• Mileage display
• Axle loads
• Diagnostic and system messages about the operating status of trailer functions
Second ride height
The suspension is fitted with a dual ride height for more axle travel in different circumstances. +50 mm.
Tyres
Continental 245/70 R17.5 HTR2 143/141J and 146/146F.
Rims
Steel rims, light grey.
Working lights
• 2 pcs
• Fitted at the front side underneath the loading floor
• Switched with reverse lights
• LED
Flashing beacon
pluggable version.
Flashing beacon connector
1x
Strobe warning lights
• Can be operated with a switch
• Mounted at the rear
• LED
• Not possible to combine with flashing beacon
Overwidth marker lights
2 sets of extendible overwidth marker board lights with red/white LED lamps and red/white reflective marker boards (class 2 foil).
Overwidth connectors at chassis
3 pin plug.
Stake for Overwidth Markerlights
Holder welded on a stake for extendible marker board lights.
LCG resistor
Used to adapt the electrical properties of LED lights to the requirements of tractor units/towing vehicles with onboard computer systems.
Spare tire
1x
Bolster
A 200 mm removable sliding bolster will be supplied to support the load. If the bolster is left in the trailer in the closed condition it will increase the overall trailer length by 200 mm.
Load table
Lightweight loading table. Width as per the trailer width.
Central greasing
• Grease level II.
• Pump brand, Bekamax
Container attachment
Detachable Twistlocks, to use with Twistlock plates, for the transport of containers.
Pneumatic truck connections
Palm type
24V connector
NATO
Connectors at the front
Dual 7 pin SAE plugs.
Camera options
Coax, 5 Pole, universal; fitted in the trailer, with about 1.5 m extra length at the front and the rear. Without connectors and camera's.
Loose ramps
Length 1,200 mm, width 599 mm, max. load per pair 40 t evenly distributed.
Stakes
Galvanised, right angled stakes 81 x 51 x 5 mm, ca. L= 1,200 mm.
Reflective tape
The chassis is equipped with white reflective tape on sides and red reflective tape on the back.
Metallization and colour
The trailer chassis is shot blasted and then metal sprayed as protective coating prior to painting. The zinc layer is applied by locally heating the surface, so the zinc layer is burned into the surface. Finished in one colour (non-metallic).
Other preservative options
Wheel rims painted in the desired colour (non-metallic) and metal spray.
Permits
Herewith is possible to request a §70 permit and possibly a §29 permit. These can be optional provided by Broshuis.
Raw materials are stored appropriately for processing and taken to the production line.
Raw materials are stored appropriately for processing and taken to the production line.3
Raw materials are stored appropriately for processing and taken to the production line.4
Raw materials are stored appropriately for processing and taken to the production line.5
Özgül Trailer's Standard Pool Tipper Semi-Trailer makes a difference in the sector with its compliance with international standards and superior quality. Each of our certificates is proof of our commitment to durability, safety, and environmental compliance.
CERTIFICATE
ISO 9001
Kalite
Areas of Use and Advantages

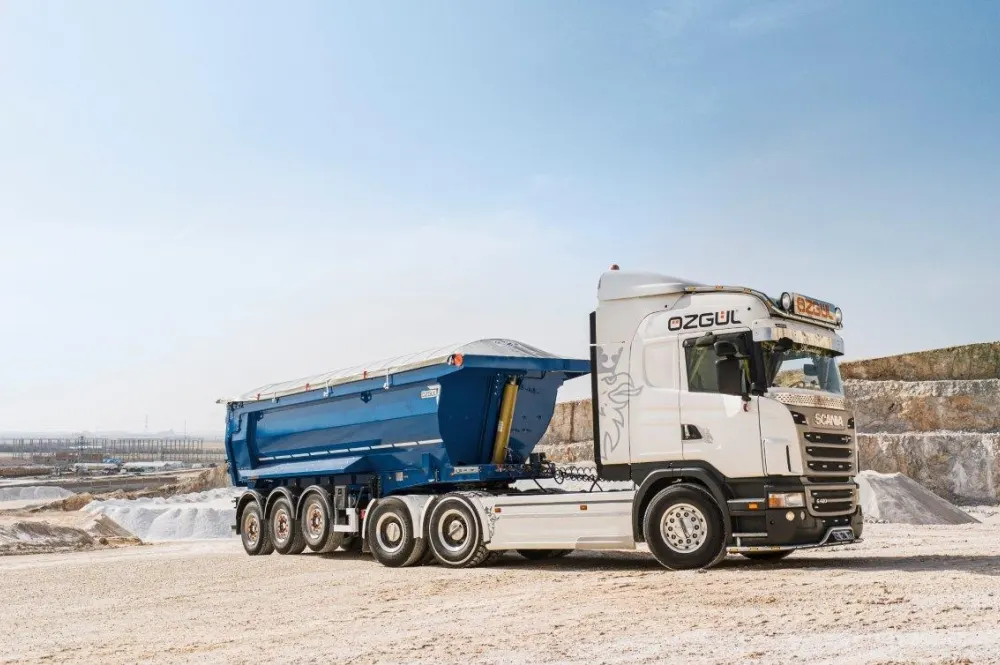

The Standard Pool Tipper is with you in your construction and mining projects. With its durability and ease of use, it carries your loads safely.
High Durability
Superior performance in tough terrain conditions.

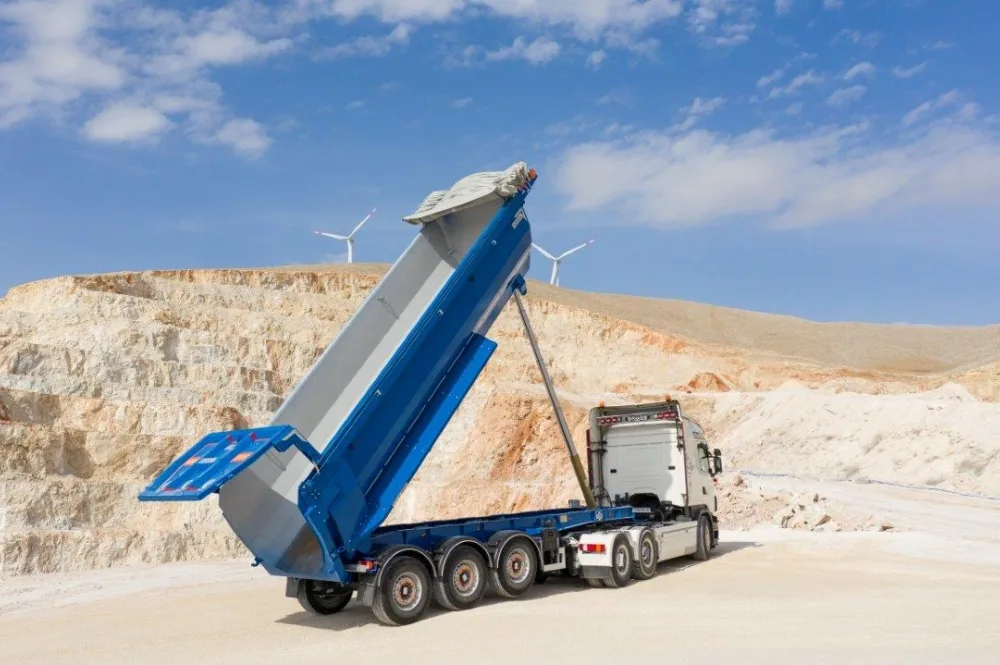

Easy Unloading
Fast and safe hydraulic system.
Customization
Custom size and coating options tailored to needs.
Definition
Every Load, Every Terrain The Standard Pool Tipper is indispensable for construction and mining projects with its wide scope of application:
- Construction Sites: Ideal for the transportation of sand, gravel, and rubble.
- Mining Sites: Safely carries heavy ore and stone loads.
- Infrastructure Projects: Quickly unloads high-volume materials.
Offers high performance and durability even in challenging terrain conditions.
